Train Wheel Overview

LEGO® Brand Train Wheels


Big Ben Bricks Train Wheels


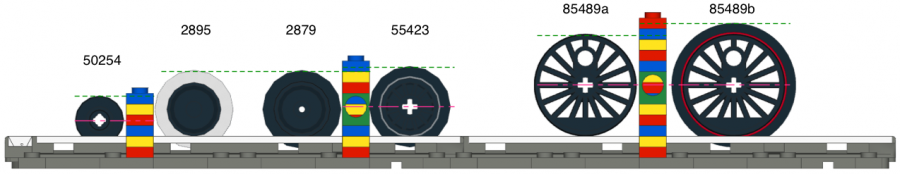

Wheel Elements

LEGO® Brand Train Wheels

Part ID Image Description Geometry Production Bricklink / Colours
2878c01 2878c01.gif Train wheel assembly, axle through-hole 23 mm flange diameter
2.5 mm tread
16.5 mm wheel diameter
4.0 mm depth
1991 - 2005 Price Guide: Black
Price Guide: Light Bluish Gray
Price Guide: Light Gray
Catalog
2878c02 2878c02.gif Train wheel assembly, no axle through-hole 23 mm flange diameter
2.5 mm tread
16.5 mm wheel diameter
4.0 mm depth
2006 - present Price Guide: Black
Price Guide: Light Bluish Gray
Catalog
55423c01 55423c01.gif Spoked train wheel with technic cross-axle hole and rubber friction band 24.0 mm flange diameter
2.5 mm tread
17.0 mm wheel diameter
5.0 mm depth
2006 - present Price Guide: Black
Price Guide: Red
Catalog
85489a 85489a.jpg Blind Driver spoked train wheel with technic cross-axle hole and counterweight 30.0 mm wheel diameter
5.0 mm tread
8.0 mm depth
2009 - present Price Guide: Black
Price Guide: Red
Catalog
85489b 85489b.jpg Flanged Driver spoked train wheel with technic cross-axle hole and counterweight 37.0 mm flange diameter
5.0 mm tread
30.0 mm wheel diameter
8.0 mm depth
2009 - present Price Guide: Black
Price Guide: Red
Catalog
50254 50254.gif Small train wheel 2009 - present Price Guide: Black
Price Guide: White
Catalog

Big Ben Bricks Train Wheels

Part ID Image Description Geometry Production Colours
fw17.6 fw176_175wx200h.png Flanged train wheel 24 mm flange diameter
2.5 mm tread
17.6 mm wheel diameter
5.0 mm depth
current Black
White
Dark Bluish Gray
Light Bluish Gray
Red
Blue
Yellow
Green
fd24.0 fd240_175wx200h.png Medium flanged driver 29.0 mm flange diameter
5.0 mm tread
24.0 mm wheel diameter
8.0 mm depth
current Black
White
Dark Bluish Gray
Light Bluish Gray
Red
Blue
Yellow
Green
bd24.0 bd240_175wx200h.png Medium blind driver 5.0 mm tread
24.0 mm wheel diameter
8.0 mm depth
current Black
White
Dark Bluish Gray
Light Bluish Gray
Red
Blue
Yellow
Green
fd30.4 fd304_175wx200h.png Large flanged driver 36.8 mm flange diameter
5.0 mm tread
30.4 mm wheel diameter
8.0 mm depth
current Black
White
Dark Bluish Gray
Light Bluish Gray
Red
Blue
Yellow
Green
bd30.4 bd304_175wx200h.png Large blind driver 5.0 mm tread
30.4 mm wheel diameter
8.0 mm depth
current Black
White
Dark Bluish Gray
Light Bluish Gray
Red
Blue
Yellow
Green
fd36.8 fd368_200x200.png Extra large flanged driver 41.6 mm flange diameter
5.0 mm tread
36.8 mm wheel diameter
8.0 mm depth
current Black
Dark Bluish Gray
Red
bd36.8 bd368_200x200.png Extra large blind driver 8.0 mm tread
36.8 mm wheel diameter
8.0 mm depth
current Black
Dark Bluish Gray
Red

Wheel Dimensions

LEGO® Train Wheel Assembly (2878) Dimensions


LEGO® Technic Train Wheel (55423) Dimensions


LEGO® Flanged and Blind Driver Wheels (85489a/b) Dimensions
